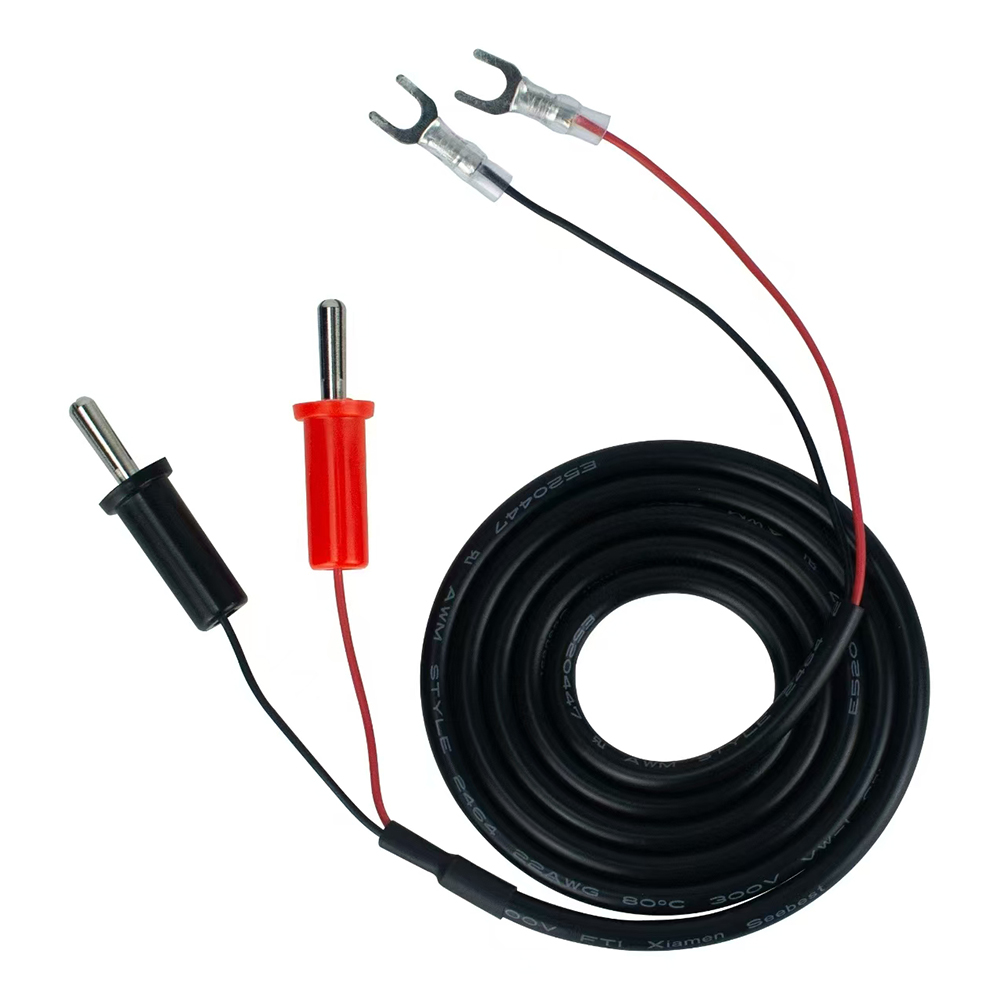

OEL15/30/60 Series DC Electronics Load

+ Compact size,Portable and movable high-performance programmable electronic load
+ 2.8-inch TFT color LCD display
+ Four operation modes: CV, CC, CR, CP
+ Supports dynamic current testing up to 5kHz
+ High resolution readback: 1mV/0.1mA
+ Supports remote sensing compensation
+ Multiple protections including OVP/OCP/OPP/OTP
+ RS232，RS485 (optional)，USB Device，SCPI protocol support
+ Optional test functions: Battery Discharge Test, OCP Test, OPP Test (Order No.OEL-T1)；
Ripple Test(Oredr NO. OEL-V)

Send Inquiry

Product Details

Specifications

The instrument must be operated continuously for more than 30minutes at the specified temperature to ensure the following parameters.

Model		OEL1515	OEL1520	OEL1530	OEL3015	OEL3020	OEL3030	OEL6015	OEL6020	OEL6030
Rated Output	Voltage	0-150V			0-300V			0-600V
	Current	0-15A	0-20A	0-30A	0-15A	0-20A	0-30A	0-15A	0-20A	0-30A
	Power	150W	300W		150W	300W		150W	300W
Operate Voltage		0.8V@15A	0.9V@20A	1.1V@30A	0.8V@15A	0.9V@20A	1.1V@30A	0.8V@15A	0.9V@20A	1.1V@30A
CV Mode
Range		0-150V			0-300V			0-600V
Resolution		1mV			1mV			1mV
Accuracy		0.05%+0.05%FS			0.05%+0.05%FS			0.05%+0.05%FS
CC Mode
Range		0-15A	0-20A	0-30A	0-15A	0-20A	0-30A	0-15A	0-20A	0-30A
Resolution		1mA			1mA			1mA
Accuracy		0.05%+0.05%IFS			0.05%+0.05%IFS			0.05%+0.05%IFS
CR Mode
Range		0.05Ω - 7.5kΩ			0.05Ω - 7.5kΩ			0.05Ω - 7.5kΩ
Accuracy *1		0.1%+0.01%R			0.1%+0.01%R			0.1%+0.01%R
CP Mode
Range		150W	300W		150W	300W		150W	300W
Resolution		10mW			10mW			10mW
Accuracy*1		0.1%+0.1%FS			0.1%+0.1%FS			0.1%+0.1%FS
Dynamic Mode
T1&T2		0.1ms-50s			0.1ms-50s			0.1ms-50s
Rise/Fall Slope		0.01A/ms-2000A/ms			0.01A/ms-2000A/ms			0.01A/ms-2000A/ms
Min. Rise Time		20μs			20μs			20μs
Voltage Readback
Range (V)		0-15V / 0-150V			0-30V / 0-300V			0-60V / 0-600V
Resolution		1mV			1mV			1mV
Accuracy		0.05%+0.05%FS			0.05%+0.05%FS			0.05%+0.05%FS
Current Readback
Range		0-15A	0-20A	0-30A	0-15A	0-20A	0-30A	0-15A	0-20A	0-30A
Resolution		0.1mA			0.1mA			0.1mA
Accuracy		0.05%+0.05%FS			0.05%+0.05%FS			0.05%+0.05%FS
Power Readback
Range		150W	300W		150W	300W		150W	300W
Resolution		10mW			10mW			10mW
Accuracy		0.1%+0.1%FS			0.1%+0.1%FS			0.1%+0.1%FS
Protection
Overpower Protection		>OPP, 10ms delay protect
Overvoltage Protection		>OVP, 0.1ms delay protect
Overcurrent Protection		>OCP, 0.1ms delay protect
Overtemperature		85℃
Optional function		Battery Discharge Test, OCP Test, OPP Test(Oredr NO. OEL-T); Ripple Test(Oredr NO. OEL-V)
Input Power		100V - 240Vac; 50Hz/60Hz
Interface		RS232, RS485(optional), USB Device, SCPI support
Heat Dissipation		Internal intelligent fan with forced air cooling
Withstand Voltage		1.5KV / AC / 5mA
Dimension		84mm151mm283mm ( W x H x D )
Device Weight		≈ 2.5kg
